Technical parameter：

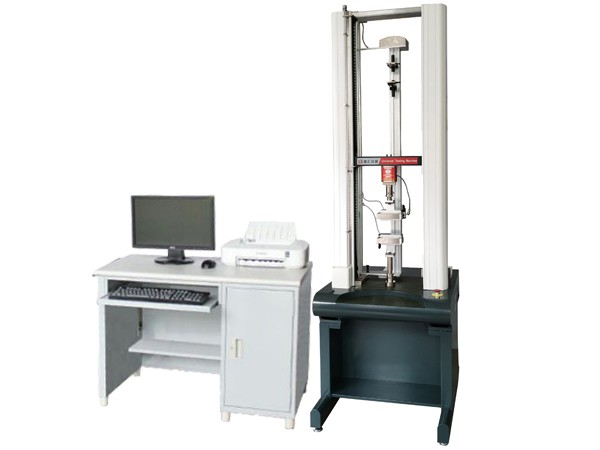

Model | XH-3241 |
Capacity(optional) | 100, 200, 500N; 1, 2, 5，10，20kN |
Unit (switchable) | kgf、LB、N、kN、PSI、MPa |
Induction mode | Force Sensors |
Display mode | computer system |
Resolution | 1/300,000 |
Max. Stroke | 1300 mm (excluding the grips) |
Effective width | 410 mm |
Stroke resolution | 0.0004 mm |
Test speed | 0.01~1000 mm/min |
Software | Special program for tensile machine |
Dimension(WxDxH) | 750X750X2380 mm |
Weight(approx. | 186 kg |
Powe | 1∮, AC 220V, 50Hz Or by country |
If there is any change in product specifications, we will not inform you otherwise. Please take the actual quotation as the criterion！
